Specialty Products & Accessories

Pass Doors, Breakaway Bottom Doors, Dock Seals, and Chain Link and Security Screen Doors

Contact us about this product

by :
Clopay Garage Doors

Pass doors, breakaway bottom doors, dock seals, security chain link and screen doors.

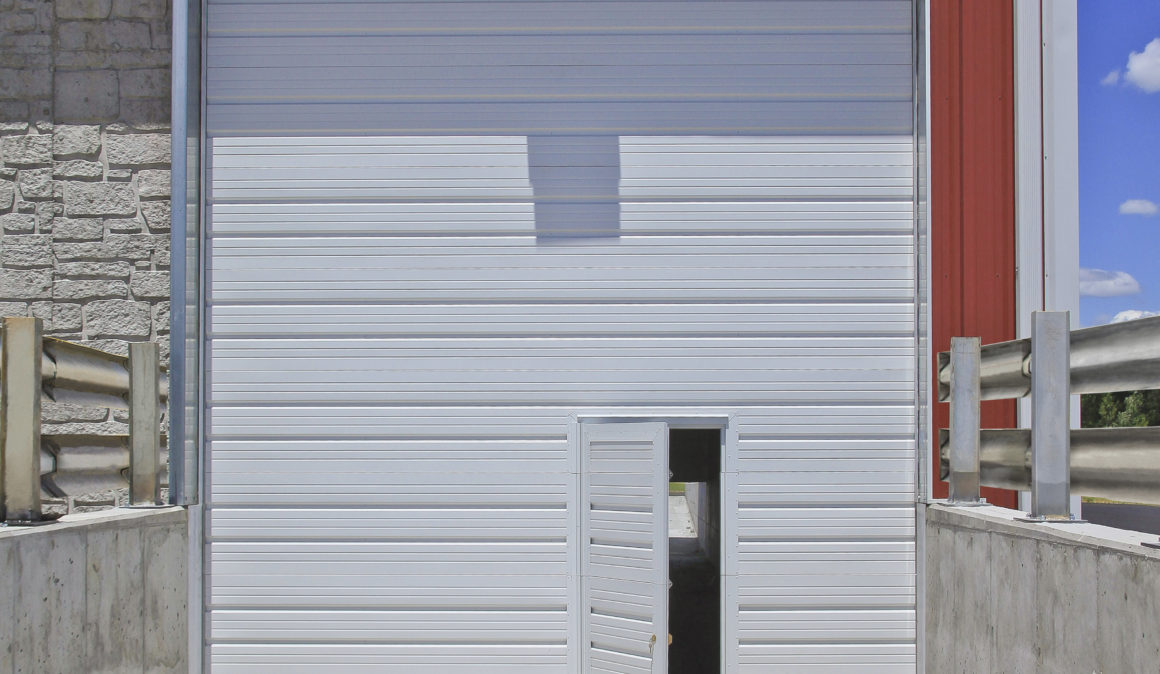

PASS DOORS

Pass doors are ideal in applications where space is too limited for the installation of a standard entry door. They conserve energy by allowing building access via a smaller opening versus the entire sectional door, this minimizes wear and tear on the door as well saves electric operator cycles. In inclimate weather, the heat or cold distribution between inside and outside of the building is minimized, conserving additional energy costs.

Available On 3720, 3722, 3724, 3200 and 3220 insulated models as well as 520 and 524 series non-insulated models



BREAK-AWAY BOTTOM SECTIONS

Break-away bottom sections will release from the track and swing up to a full 45 degree angle inward or outward, preventing further damage to the door.

Available On 3724, 3722, 3720, 3718, 3717, 3220, and 3200 models as well as all 520 series and all 524 series.



CHAIN LINK AND SCREEN SECURITY DOORS

Screen and chain link security doors are a cost-effective way to add security, pest control and ventilation to your facility.

811 11 gauge galvanized steel, chain link security door.
812 1-1/2" or 1-7/8" thick aluminum frame with stainless steel mesh screens



DOCK SEALS

Dock seals and shelters provide protection from the weather for your dock and personnel in almost every application. They seal loading docks against changes in the environment that can cost you time and money.

DS100 Compressible Foam Dock Seal
DS140 Adjustable Head Curtain Dock Seal
DS200 Rigid Dock Shelter



FEATURES - PASS DOOR

welded aluminum frame - pass door Welded aluminum frame with shiplap design affords added strength and durability while providing a weather-tight door seal. Rain cap feature protects door entrance against accumulated water during rain showers.
geared hinge - pass door Geared hinge ensures smooth operation and enhances longevity of the pass door.
closer - pass door Commercial door closer ensures safe and quiet closure.
continuous boxed channel Continuous boxed channel bottom rail adds additional strength against wind and horizontal deflection.

FEATURES - BREAK-AWAY BOTTOM SECTION - VIEW VIDEO

  Clopay's Break-Away Bottom Section releases from the track and will swing up to a full 90 degree angle inward or 45 degrees outward, preventing further damage to the door.
  Bottom section snaps back into place in less than a minute.
  Inside of section has fiberglass protective panel to prevent damage to the door.
  Optional inside slide lock provides additional security. Padlock may be applied.
 Specifications:
  • Doors must have at least 24" of hi-lift.
  • 36" of headroom required.
  • Not compatible with door drop safety device/bottom brackets.
  • Not compatible with doors requiring a double torsion shaft
 Warranty: 1 Year Limited Construction



FEATURES - 811

Panel Design: 2-1/2" x 1-1/2" aluminum frame
Panel Inserts: 11 gauge galvanized steel chain link with2" diamond openings
Panel Thickness: 1-1/2" thick aluminum
Joint Design: Flat block meeting rail
Thermal Conductivity: None
Hardware: Commercial grade hinges, rollers and brackets
Colors: Mill finished aluminum, powder coating optional
Limited Warranty: 1-year material and workmanship


FEATURES - 812

Panel Design: 1-1/2" or 1-7/8" thick extruded aluminum rails
Panel Inserts: 304 stainless steel in 12 x 12 or 30 x 30 mesh
Panel Thickness: 1-1/2" or 1-7/8" thick
Joint Design: Interlocking rails
Thermal Conductivity: None
Hardware: Commercial grade hinges, rollers and brackets
Colors: Mill finished aluminum, powder coating optional
Limited Warranty: 1-year material and workmanship


FEATURES - DS100/DS140

Pad Design: High density polyurethane foam bonded to quality treated wood framing
  22 oz, 40 oz or 50 oz vinyl-coated polyester fabric

24" high head curtain with 24" splits and hook & loop fasteners (DSI40 only)
  Full length 3" wide yellow guide stripe on side panels
  Nylon mesh breather panels on side and head pads

Side and top seals available with beveled edges
Colors: Standard color is black. Optional brown, blue green (50 oz vinyl available black only)

Hardware: Rust-resistant mounting hardware
Warranty: 1 year


FEATURES - DS200

Pad Design: Pressure treated wood framing with translucent fiberglass top and 32 oz vinyl sides
  40 oz vinyl-coated fabric top and side face curtains mounted over a rigid frame
  Head curtain with vinyl-coated wear pleats at each end; sloped header to provide drainage; exterior frame corners trimmed with aluminum angle
  PVC bottom panels with highly visible yellow guide stripe
Colors: Standard color is black. Optional brown, blue green (50 oz vinyl available black only)
Guards: Two 6" steel channel guards to support and protect frame
Hardware: Rust-resistant mounting hardware
Warranty: 1 year
Models CAD BIM Shop Drawing Specification Literature(PDF) Instruction Manual(PDF) Warranty
Steel - Security 1 inch x 11 gauge
Model 811 DWG IconDXF Icon   DWG IconDXF Icon DOC IconPDF Icon 812 / 811 Brochure Installation ManualSupplemental Installation
Aluminum - Screen 2 inch x .75 inch
Model 812 DWG IconDXF Icon   DWG IconDXF Icon DOC IconPDF Icon 812 / 811 Brochure Installation ManualSupplemental Installation
Aluminum — Polycarbonate 2 inch x 2 inch
Model 950 DWG IconDXF Icon   DWG IconDXF Icon PDF IconTXT Icon 950Info.pdf Installation ManualSupplemental Installation
Dock Seals and Shelters
Models DS100     PDF IconPDF Icon PDF IconTXT Icon Model DS100, DS140, DS200 Installation ManualSupplemental Installation
Models DS140     PDF IconPDF Icon PDF IconTXT Icon Model DS100, DS140, DS200 Installation ManualSupplemental Installation
Models DS200     PDF IconPDF Icon PDF IconTXT Icon Model DS100, DS140, DS200 Installation ManualSupplemental Installation


Click on appropriate icon to download
To use the Spec Wizard, click here

(What is Spec Wizard?)

SpecWizard
