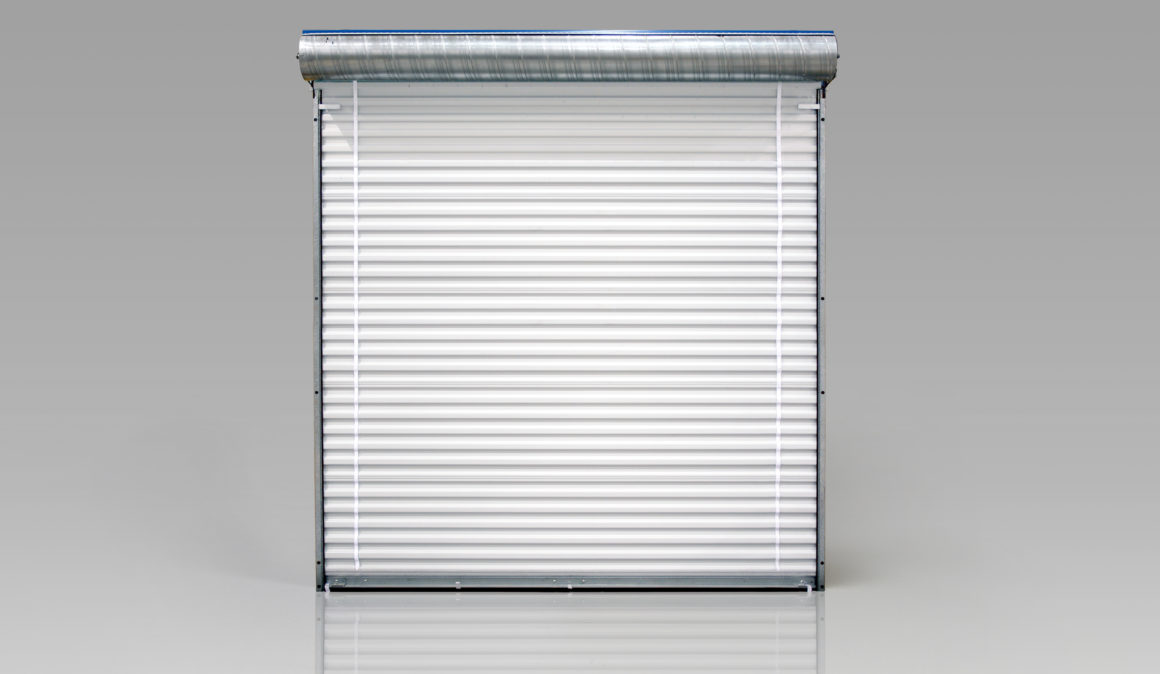

Roll-up Sheet Doors

models 150c, 157c, 160c

Contact us about this product

by :
Clopay Garage Doors

Roll-up sheet doors are ideal for mini warehouse and storage facilities. Constructed from 26ga by 24 in wide sheets of steel roll formed with integral grooves that are hemmed together to form a continuous sheet guided vertically by roll formed guides.

160C Heavy Duty 12" Coil
157C Medium Duty 12" Coil
150C Light Duty 9" Coil

COMMERCIAL GARAGE DOORS: COILING / ROLL UP SHEET DOORS

Constructed from 26ga by 24 in wide sheets of steel roll formed with integral grooves that are hemmed together to form a continuous sheet guided vertically by roll formed guides. Sheet coils around a spring loaded shaft above the header as the door is opened. Designed with ease of installation in mind.

160C Heavy Duty 12" Coil
157C Medium Duty 12" Coil
150C Light Duty 9" Coil
  • 26 gauge hot-dipped galvanized steel curtain with a baked-on silicone polyester top coat.
  • Roll-formed guides of hot-dipped galvanized steel (18 gauge 150C, 16 gauge 157C and 12 gauge 160C).
  • Self-lubricating wearstrips on curtain prevent metal-to-metal contact and muffle door noise.
  • Curtains are prepainted inside and out to inhibit rust. Hot-dipped, galvanized steel is painted with primer and given a tough oven-baked silicone polyester top coat, to provide the most rust-resistant steel door available.
  • Heavy-duty bottom bar withstands the external elements.
  • Full bulb-type bottom weatherstrip ensures proper fit along irregular floors.

BAKED-ON SILICONE POLYESTER PAINT

STANDARD COLORS

ru-01-color-white ru-02-color-glossy-white ru-03-color-silhouette-gray ru-04-color-buckskin ru-05-color-polar-blue ru-06-color-desert-tan ru-07-color-royal-blue ru-08-color-sandstone ru-09-color-forestgreen ru-10-color-continental-brown ru-11-color-evergreen ru-12-color-bronze ru-13-color-fern-green ru-14-color-cedar-red ru-15-color-dark-teal ru-16-color-valentine-red ru-17-color-teal ru-18-color-tangerine ru-19-color-marine-green ru-20-color-sunset-orange

*Colors shown may not reflect true steel color.
Use for reference only. Premium colors are an upcharge.

Models CAD BIM Shop Drawing Specification Literature(PDF) Instruction Manual(PDF) Warranty
26 Gauge Steel Curtain
150C     PDF Icon DOC Icon CMDC-ROLLUPSS-10.pdf Installation_150C.pdf PDF Icon
157C     PDF Icon DOC Icon CMDC-ROLLUPSS-10.pdf Installation_157C.pdf PDF Icon
160C     PDF Icon DOC Icon CMDC-ROLLUPSS-10.pdf Installation_160CW6.pdf PDF Icon


Click on appropriate icon to download
To use the Spec Wizard, click here

(What is Spec Wizard?)

SpecWizard
