Energy Series with Intellicore garage doors

Polyurethane Insulated Steel Doors r-values to 22.2

Email | Print

by :

Description
Models
Options
Features/Benefits
Specs/Drawings
Brochures
Springs & Hardwares

Description

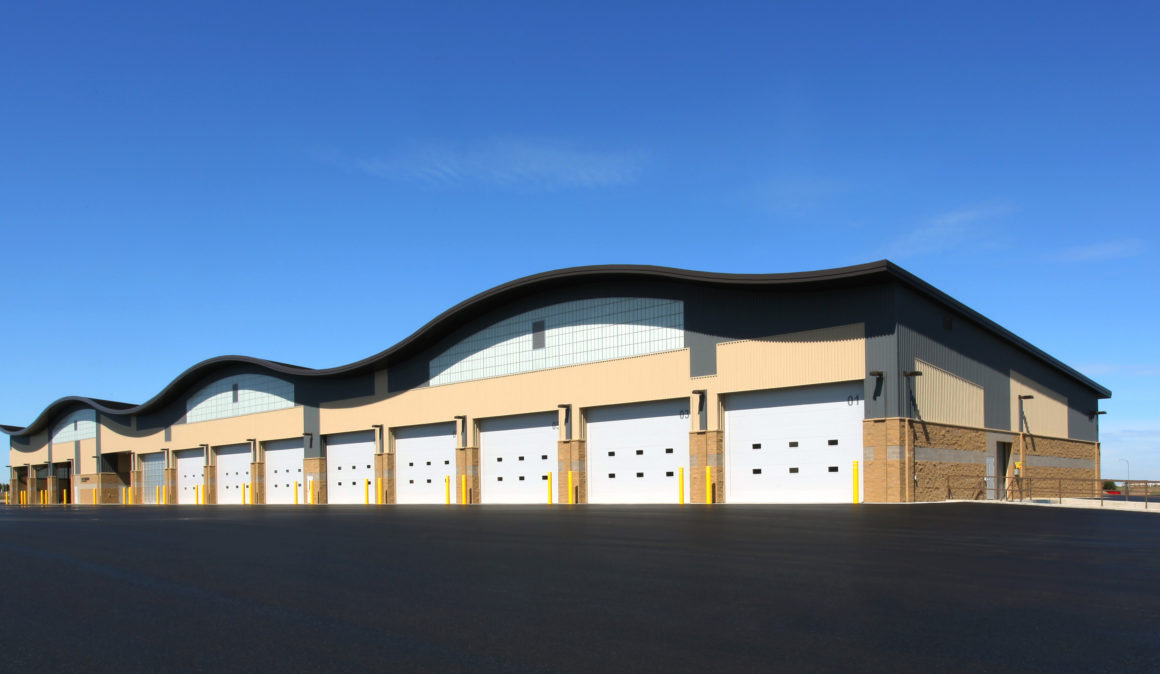

Climate control, reliability, durability-- our premier, thermally broken, polyurethane insulated steel garage doors have it all, providing excellent temperature control, energy efficiency and long-lasting service for a wide range of applications, such as firehouses, warehouses, and municipal buildings.

Models

Model	Thickness	Emboss	Exterior Steel	Pattern	R-Value*	Std Max Width**	Std Max Height
3730	3"	Stucco	27 Gauge	Minor Ribbed	22.2	30'2"	20'0"
3729	2"	Stucco	27 Gauge	Minor Ribbed	18.4	20'2"	18'0"
3728	2"	Stucco	27 Gauge	Flush	18.4	20'2"	18'0"
3724	2"	Stucco	24 Gauge	Minor Ribbed	18.4	36'2"	20'0"
3723	2"	Stucco	27 Gauge	Raised Panel	18.4	24'5"	18'0"
3722	2"	Stucco	20 Gauge	Flush	18.4	32'2"	20'0"
3721	2"	Stucco	27 Gauge	Flush	18.4	34'5"	18'0"
3720	2"	Stucco	27 Gauge	Minor Ribbed	18.4	36'2"	20'0"
3717	1 3/4"	Stucco	27 Gauge	Minor Ribbed	16.2	24'2"	20'0"
3718	1 3/4"	Stucco	27 Gauge	Flush	16.2	24'2"	20'0"
3715	1 3/8"	Stucco	27 Gauge	Minor Ribbed	12.9	18'2"	16'0"
3709	1-3/8"	Stucco	27 Gauge	Minor Ribbed	12.9	18'2"	16'0"
3708	1-3/8"	Stucco	27 Gauge	Flush	12.9	18'2"	16'0"

*Calculated door section R-value is in accordance with DASMA TDS-163
**For sizes over 32'2" wide consult factory for specific configuration requirements.

Options

Intellicore® doors come with a variety of options to address your building requirements. Options below are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.

DESIGN OPTIONS:

Windows
24"x8"
24"x12"
Full View (pre-painted white or brown or clear anodized)
Black frame Window with Rounded Corners

COLORS:

White - All Models
Glacier White - 3715, 3717, 3718, 3720
Trinar® White - 3715, 3717, 3718, 3720
Trinar® Beige - 3715, 3717, 3718, 3720
Brown - All Models
Mocha Brown - 3715, 3717, 3718, 3720
Black - 3724
Tan - 3715, 3717, 3718, 3724
Gray - 3715, 3717, 3718, 3724
ColorBlast - All models

PERFORMANCE OPTIONS:

High Cycle Springs (25K, 50K and 100K available)
3" heavy duty track (where not standard)
Outside keyed Security Lock
Double End Stiles
Design pressure rated (WindCode)
Impact Rated
Photo eyes, sensing edges and Operators
Sustainable Door Upgrade
Header (top) and Jamb Seals

CUSTOM OPTIONS:

Mullions
Breakaway Sections
Pass Door

Features/Benefits

MODEL 3730

Panel Design:	3" thick stucco embossed ribbed steel exterior
Steel Gauge:	27 gauge (.016" min) exterior; 28 gauge (.015" min) interior
Joint Design:	Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
Thermal Conductivity:	R-value 22.2* for maximum energy efficiency
Paint System:	3-stage paint process delivers maintenance free finish that resists rust prevention
Colors:	Snow mist white, commercial brown, Colorblast^TM
Limited Warranty:	10-year paint / 10-year delamination / one-year material & workmanship

MODEL 3720 / 3724 / 3722

Panel Design:	(3720 & 3724) 2" thick stucco embossed steel exterior with minor ribbed pattern (3722) 2" thick stucco embossed flush steel exterior
Steel Gauge:	(3720) 27 gauge (.016" min) exterior; 28 gauge (.015" min) interior (3724) 24 gauge (.022" min) exterior; 28 gauge (.015" min) interior (3722) 20 gauge (.034" min) exterior; 28 gauge (.015" min) interior
Joint Design:	Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
Thermal Conductivity:	R-value 18.4* for maximum energy efficiency
Paint System:	3-stage paint process delivers maintenance free finish that resists rust perforation
Colors:	(3720 & 3722) Pre-painted snow mist white, commercial brown (3724) Pre-painted snow mist white, brown, commercial tan, gray and Trinar white
Limited Warranty:	10-year paint / 10-year delamination / one-year material & workmanship

MODEL 3717 / 3718

Panel Design:	(3717) 1 3/4" thick stucco embossed steel exterior with minor ribbed pattern (3718) 1 3/4" thick stucco embossed flush steel exterior
Steel Gauge:	27 gauge (.016" min) exterior; 28 gauge (.015" min) interior
Joint Design:	Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
Thermal Conductivity:	R-value 16.2* for maximum energy efficiency
Paint System:	3-stage paint process delivers maintenance free finish that resists rust perforation
Colors:	Pre-painted snow mist white, commercial brown, tan or gray. Optional Trinar white.
Limited Warranty:	10-year paint / 10-year delamination / one-year material & workmanship

MODEL 3715

Panel Design:	1 3/8" thick stucco embossed steel with minor ribbing
Steel Gauge:	27 gauge (.016" min) exterior; 28 gauge (.015" min) interior
Joint Design:	Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
Thermal Conductivity:	R-value 12.9* for maximum energy efficiency
Paint System:	3-stage paint process delivers maintenance free finish that resists rust perforation
Colors:	Pre-painted snow mist white or commercial brown, tan and gray
Limited Warranty:	10-year paint / 10-year delamination / one-year material & workmanship

*Calculated door section R-value is in accordance with DASMA TDS-163.

Specs/Drawings

Models	Literature(PDF)	Instruction Manual(PDF)
Three Layer - Polyurethane - 1-1/2 inch
Model 3715 Ribbed, 27 Gauge	3715 Brochure	Supplemental Installation Installation Manual
Three Layer - Polyurethane - 1-3/4 inch
Model 3717 Ribbed, 27 Gauge	3717, 3718 Brochure Sustainable Upgrade	Supplemental Installation Installation Manual
Model 3718 Flush, 27 Gauge	3717, 3718 Brochure Sustainable Upgrade	Supplemental Installation Installation Manual
Three Layer - Polyurethane - 2 inch
Model 3720 Ribbed, 27 Gauge	3720, 3721, 3723 Brochure Sustainable Upgrade	Supplemental Installation Installation Manual
Model 3722 Flush, 20 Gauge	3722 Brochure Sustainable Upgrade	Supplemental Installation Installation Manual
Model 3724 Ribbed, 24 Gauge	3724 Brochure Sustainable Upgrade	Supplemental Installation Installation Manual
Three Layer - Polyurethane - 3 inch
Model 3730 Ribbed, 27 Gauge	3730 Brochure Sustainable Upgrade	Supplemental Installation Installation Manual

Click on appropriate icon to download
To use the Spec Wizard, click here

(What is Spec Wizard?)

Track and Jamb Drawings

	dwg	dxf	pdf
Standard Track
Standard Track Follow the Roof Track
Low Headroom–Rear Mount Track
Low Headroom–Front Mount Track
High Lift Track
High Lift Follow-the-Roof Track
Vertical Track
Jamb Details

Brochures

Springs & Hardwares

COMMERCIAL HARDWARE

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.

14 gauge hinges
Commercial 10 ball steel rollers with options for nylon tire rollers
10,000 cycle torsion springs
Steel step plate and lift handle for easy operation
Inside slide lock for increase security
19 gauge steel hinge support plates
18-gauge single end stiles; 16-gauge double end stiles
Galvanized aircraft cables with 7:1 safety factory
2” or 3” track in a variety of configurations to meet building design requirements

COMMERCIAL TRACK APPLICATIONS

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options. Learn more

COMMERCIAL TORSION SPRINGS

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. . Click here for details
