Architectural Series/Full View Aluminum Doors

The perfect choice for architectural applications that require open visibility, bright light and a modern, industrial design.

Contact us about this product

by :
Clopay Garage Doors

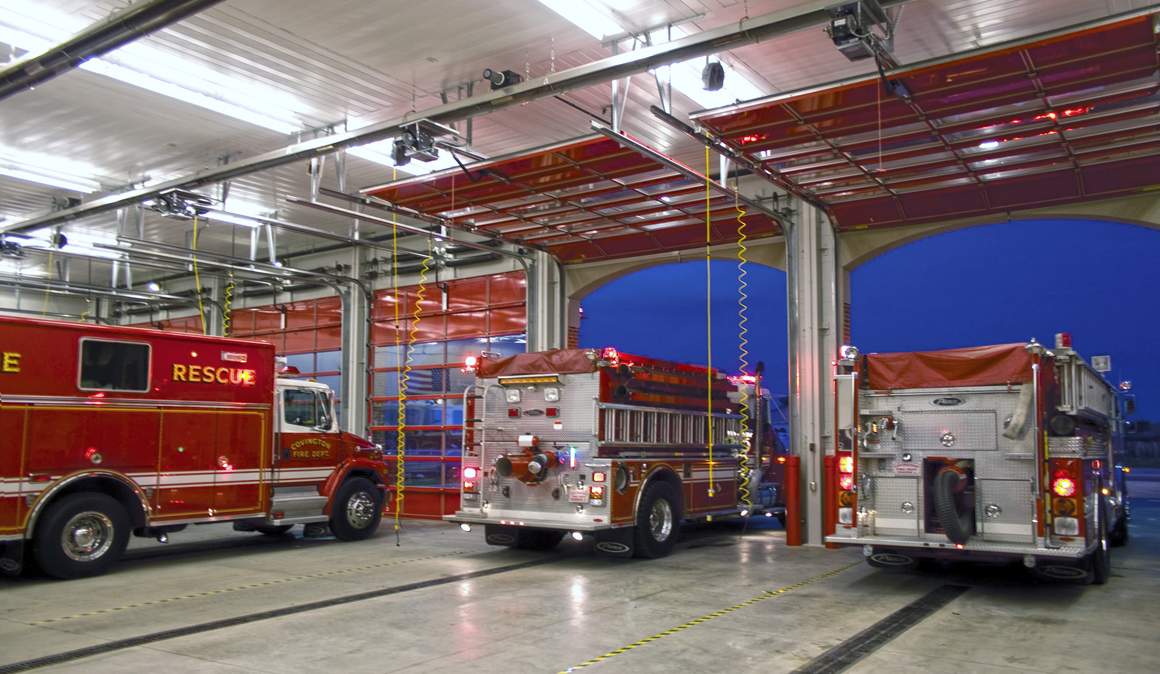

The Full-View aluminum series doors can be used as a standard exterior garage door, as an interior "partition" or even as a versatile patio door to seamlessly merge indoor and outdoor spaces. Well-suited for restaurants, service stations, car dealerships, fire stations and trendy commercial retail and office spaces with a distinct architectural appearance.

Model Section Thickness Panel Spacing Max Width** Max Height
902 2" 44" on center, end panels vary 24'2" 20'0"
903 2" Equal panel spacing 24'2" 20'0"

Full Vision doors come with a variety of options to address your building requirements. Along with a variety of finishing options and glazing materials, full view doors can be designed with additional stiles or custom section arrangements, creating a unique look with design flexibility.

Design Options:

Glazing Material

  • 1/2" (12.7 mm) insulated
  • 1/2" (12.7 mm) insulated tempered
  • 1/8" (3.2 mm) tempered
  • 1/4" (6.4 mm) tempered
  • 1/8" (3.2 mm) plexiglass
  • 1/4" (6.4 mm) wire glass
  • 1/8" (3.2 mm) DSB glass
  • 1/4" (6.4 mm) polycarbonate
  • Custom glazing options available

Finishing Options:

Standard finished include white or brown painted and clear anodized finish.

Premium finishing options include:

  • RAL color powder coat
  • Custom powder coating
  • Bronze, dark bronze, black or custom color anodized finishing

Performance Options:

  • High Cycle Springs (25K, 50K and 100K available)
  • 3" heavy duty track (where not standard)
  • Double End Stiles
  • Carbon monoxide vents
  • Photo eyes, sensing edges and Operators
  • Sustainable Door Upgrade
  • Header (top) and Jamb Seals
  • Options to meet Wind load design pressure levels

Custom Options:

  • Mullions
Panel Design: Recessed aluminum panel
Gauge: 0.75" thick extrusions .050" aluminum panels
Joint Design: Tongue and groove with built in reinforcing fin
Thickness: 2-1/8"
Colors: Clear, bronze, black, anodized, white, commercial brown. Custom colors available.
Limited Warranty: 5-year finish / 1-year material & workmanship

COMMERCIAL HARDWARE

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.

  • 14 gauge hinges
  • Commercial 10 ball steel rollers with options for nylon tire rollers
  • 10,000 cycle torsion springs
  • Steel step plate and lift handle for easy operation
  • Inside slide lock for increase security
  • 19 gauge steel hinge support plates
  • 18-gauge single end stiles; 16-gauge double end stiles
  • Galvanized aircraft cables with 7:1 safety factory
  • 2” or 3” track in a variety of configurations to meet building design requirements

COMMERCIAL TRACK APPLICATIONS

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.  Learn more

COMMERCIAL TORSION SPRINGS

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. . Click here for details
